20m3 5000 gallon underground FRP GRP septic tank for building shopping mall school hospital biogas sptic tank price
Production Description
Key attribute
Industry-specific attribute
| Application | Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops |
| techinque | Winding |
Other attribute
| Dimension | customized |
| Surface Treatment | smooth ,customized |
| Marketing Type | Hot Product 2024 |
| Dimension | as order |
| size | Accept customization |
| color | green,or customized |
| material | Fiber Reinforced Plastic,FRP GRP |
| Brand Name | YongDa |
| product name | FRP Septic tank; FRP Septic Tank Wastewater Treatment; FRP Septic tank products |
| place of origin | Shandong province,CHINA |
| shape | Horizontal or Customized |
| Function | sewage wasterwater Treatment |
Packaging and delivery
| packaging Details | bundled,nude,as otrder |
| port | QingDao or Customized |
Supply Ability
| selling units | single set |
| single package size | based on orders |
| Single gross weight | based on orders |
| Supply Ability | 10 Set per Week |
Lead time
| quantity(meters) | 10 | ＞10 |
| Lead time(days) | 15 | To be negotiated |
Customization
Customized logo
Min. order: 1
Customized packaging
Min. order: 1
Graphic customization
Min. order: 1

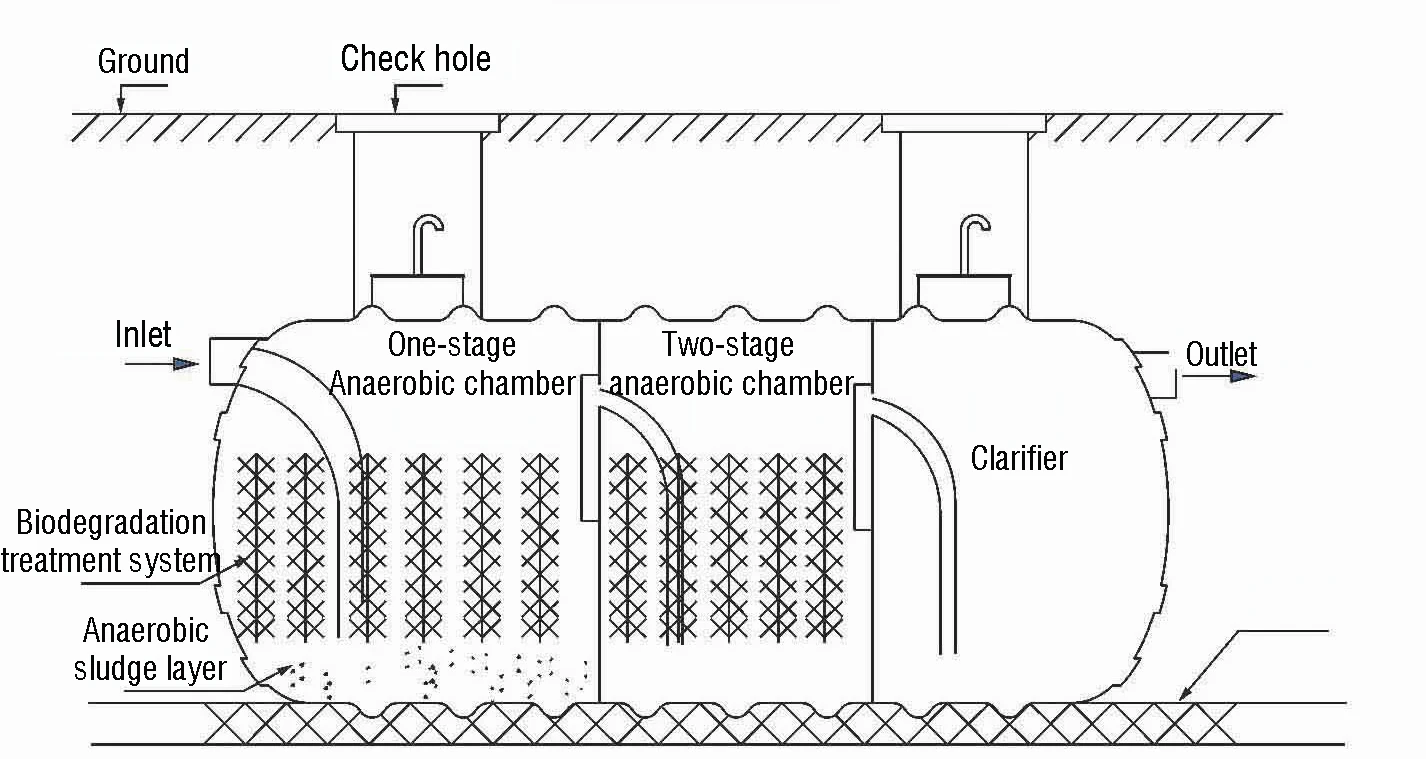

Working Pinciple of FRP / GRP Biogas Septic Tank
Septic tank is primary treatment structures which remove the suspended matter in domestic sewage by adopting sediment and anaerobic fermentation principle, domestic sewage contain plenty of feces, Paper Scrap, parasite etc impurity, the suspended solid concentration is 100-350mg, organism concentration BOD5 is between 100 to 400mm, the suspended organism BOD is 50 to 200mg among of them. sewage enter into septic tank will remove 50% to 60% suspended matter after 12 to 24h sediment , the sediment sludge will anaerobic digestion above 3 month, which will make the organism decompose stable inorganics, corruptible raw sludge translate to ripe sludge , it changed sludge structure, reduce sludge water ratio, clear it and transport out regular. Landfill or reuse it as fertilizer.
Specification of FRP / GRP Biogas Septic Tank
| Effective Volume | Diameter | Septic Tank Length | Height | Clapboard Hole | Head String Height | Wall Thickness |
| (m3) | (mm) | (mm) | (mm) | (mm) | d(mm) | b(mm) |
| 2 | 1500 | 1700 | 1200 | DN300×2 | 250 | 9 |
| 4 | 1800 | 2200 | 1500 | DN300×2 | 250 |
| 6 | 1800 | 2700 | 1500 | DN300×2 | 300 |
| 9 | 1800 | 3000 | 1500 | DN300×2 | 300 |
| 12 | 1800 | 3200 | 1500 | DN300×2 | 300 |
| 16 | 2300 | 2500 | 2000 | DN300×2 | 600 | 11.1 |
| 20 | 2300 | 3200 | 2000 | DN300×2 | 600 |
| 25 | 2300 | 4000 | 2000 | DN300×2 | 600 |
| 30 | 2300 | 4800 | 2000 | DN300×2 | 600 |
| 40 | 2800 | 4200 | 2500 | DN300×2 | 600 | 14.1 |
| 50 | 2800 | 5200 | 2500 | DN300×2 | 600 |
| 60 | 3000 | 5700 | 2700 | DN300×2 | 600 | 14.1 |
| 75 | 3000 | 6700 | 2700 | DN300×2 | 600 |
| 100 | 3500 | 6700 | 3200 | DN300×2 | 650 | 19.1 |
Application of Household FRP/GRP Biogas Septic Tank
Homehouse
Townhouse
Aquaculture, Fish Farming Filtration System
Centralized Filtration System
Environmental Water Treatment
Industrial Water Treatment
Construction Site of FRP / GRP Biogas Septic Tank
Company Profile
Weifang Yongda FRP Co., Ltd. was founded in 2009, is a professional engaged in glass fiber reinforced thermosetting plastic and other new composite materials research and development, production, sales, service, a comprehensive scale of four-in-one enterprise!
The company's main products: FRP pipes, pipe fittings, FRP purification tower series, biological deodorization filter tank, environmental protection equipment, exhaust gas treatment system, activated carbon adsorption tank, septic tank, cooling tower series, storage tanks, equipment tanks, aquaculture equipment, equipment shrouds, and to undertake anticorrosive engineering, thermal insulation engineering, VOCs purification project.
Translated with DeepL.com (free version)
Why Choose Us
Advanced production equipment
Adequate inventory
Transportation and packaging
FAQ
Q1: What is your company name?
WeiFang YongDa FRP Co., Ltd
Q2: Are you a factory or a trading company?
We are a factory and a professional manufacturer of FRP products. We have more than 50 skilled
technicians. In addition,
we have professional mold engineers for design and production.
Q3: Where is your factory? How can I visit you?
West side of the road about 3 kilometers north of Wenhe Bridge Toll Station on National Highway 206,
Ying qiu Town, Chang Le County, Weifang City, Shandong
Province, China.If you come to our factory,
I will arrange a pick-up for you so that we can meet up faster.
Q4: How can you guarantee the product quality?
We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the
professional QC team, and each our package worker will be in charge of the final inspection according
to the QC instruction before packing.
Q5: Can you do OEM for me?
We accept all OEM orders, just contact us and give me your design,we will offer you a reasonable
price ASAP.
Q6: What payment methods do you support?
T/T, L/C. western union
